IEC 60870-5-104
2025/8/31大约 2 分钟
IEC 60870-5-104
[标准文档下载](GitCode - 全球开发者的开源社区,开源代码托管平台)
File
| 序号 | 功能 | 说明 | 进度 |
|---|---|---|---|
| 1 | Load settings ... | ||
| 2 | Save settings ... | ||
| 3 | Save setting as ... | ||
| 4 | Exit |
Connection
| 序号 | 功能 | 说明 | 进度 |
|---|---|---|---|
| 1 | Connect / Disconnect | ||
| 2 | Parameters ... | ||
| 3 | Automatic START DT | ||
| 4 | Send START DT | ||
| 5 | Send STOP DT | ||
| 7 | Automatic Reconnect | ||
| 8 | Download File ... | ||
| 9 | Upload File ... |

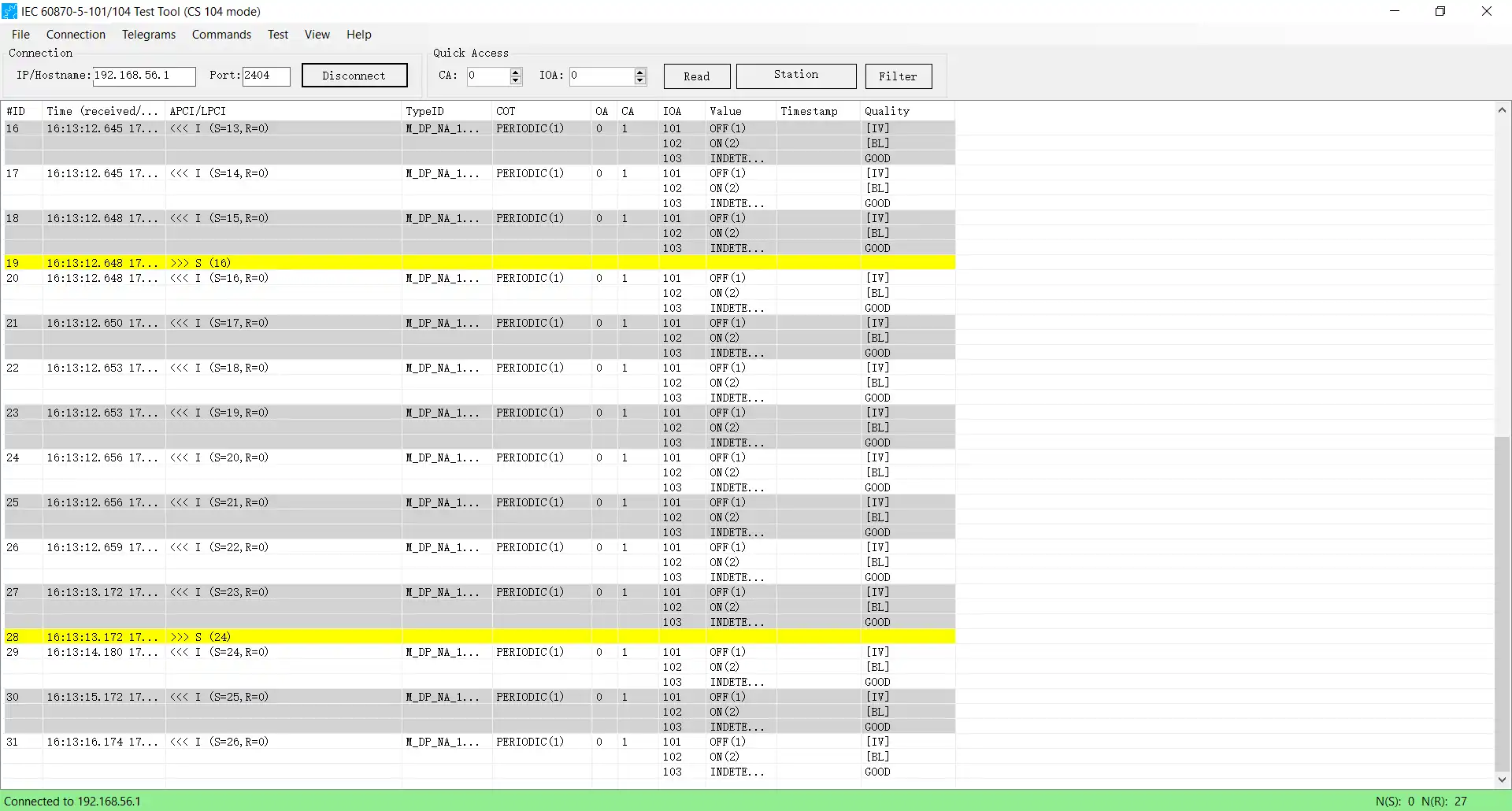

Telegrams
| 序号 | 功能 | 说明 | 进度 |
|---|---|---|---|
| 1 | Clear list | ||
| 2 | Pause recording | ||
| 3 | Save telegrams ... | ||
| 4 | Load telegrams ... | ||
| 5 | Show send telegrams | ||
| 6 | Filter ... | ||
| 7 | Automatic Scrolling | ||
| 8 | Settings ... |
Commands
[!quote]
The Command menu contains options to send any kind of command or process data to the device.
| 类型 | 说明 |
|---|---|
| System Command | |
| Process | Send a command that influences the process |
| Parameters | Send parameter in control direction |
| Monitoring (Reverse) | This can be used to send a monitoring message in reverse direction. |
| New Type | This can be used to create a user defined type description. |
| Send Message | This can be used to send standard message and commands as well as user defined types. |
| Manual Message | This can be used to enter hexadecimal information, set parameters and see the message details. |

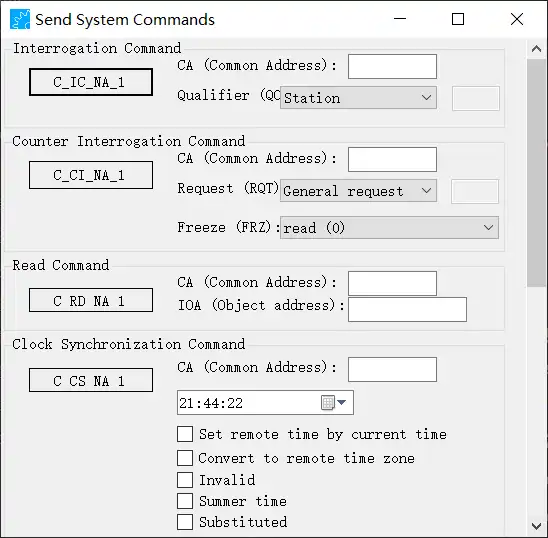

System Commands
参考界面：
| 序号 | 类型 | 说明 | 进度 |
|---|---|---|---|
| 1 | Interrogation Command | 总召唤 | |
| 2 | Counter Interrogation Command | ||
| 3 | Read Command | ||
| 4 | Clock Synchronization Command | ||
| 5 | Test Command | ||
| 6 | Test Command wit CP56Time2a | ||
| 7 | Delay acquisition command | ||
| 8 | Reset Process Command |

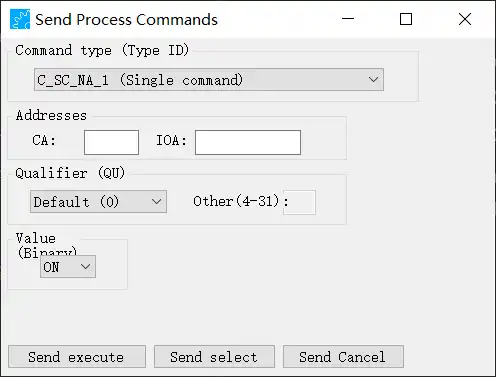

Process Commands
参考界面：
| 序号 | 类型 | 值 | 说明 | 进度 |
|---|---|---|---|---|
| 1 | C_SC_NA_1 | Single command | ||
| 2 | C_DC_NA_1 | Double command | ||
| 3 | C_RC_NA_1 | Step command | ||
| 4 | C_SE_NA_1 | Setpoint Normalized | ||
| 5 | C_SE_NB_1 | Setpoint Scaled | ||
| 6 | C_SE_NC_1 | Setpoint Short | ||
| 7 | C_BO_NA_1 | Setpoint Bitstring | ||
| 8 | C_SC_TA_1 | Single command w/CPTime2a | ||
| 9 | C_DC_TA_1 | Double command w/CPTime2a | ||
| 10 | C_RC_TA_1 | Step command w/CPTime2a | ||
| 11 | C_SE_TA_1 | Setpoint Normalized w/CPTime2a | ||
| 12 | C_SE_TB_1 | Setpoint Scaled w/CPTime2a | ||
| C_SE_TC_1 | Setpoint Short w/CPTime2a | |||
| C_BO_TA_1 | Setpoint Bitstring w/CPTime2a |

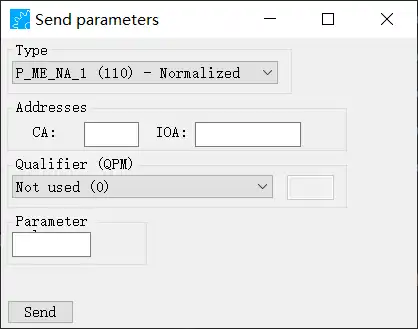

Parameters
参考界面：
| 序号 | 类型 | 值 | 说明 | 进度 |
|---|---|---|---|---|
| 1 | P_ME_NA_1 | 110 | Normalized | |
| 2 | P_ME_NB_1 | 111 | Scaled | |
| 3 | P_ME_NC_1 | 112 | Short Float | |
| 4 | P_AC_NA_1 | 113 | Activation |

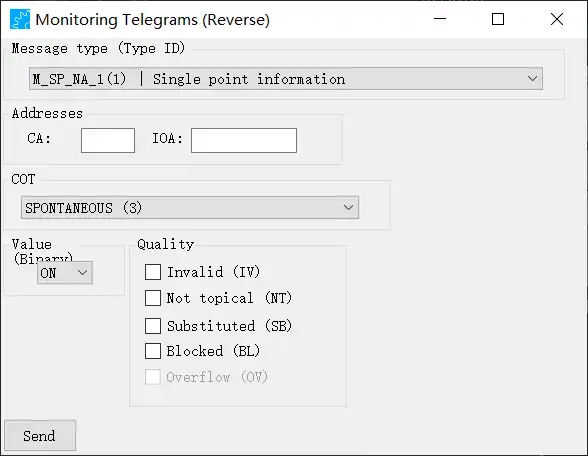

Monitoring (Reverse)
参考界面：
View

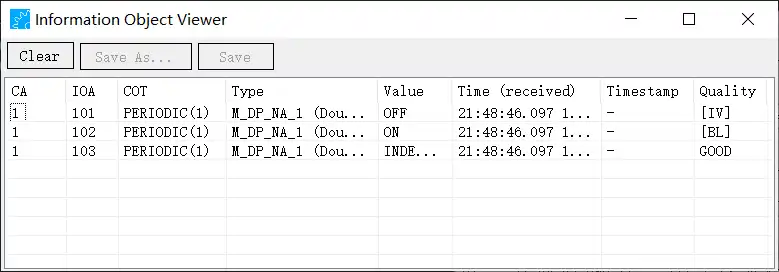

The Information Object Viewer
[!quote]
Show the latest state (with value, timestamp, and quality) of all received information object in a table
参考界面：

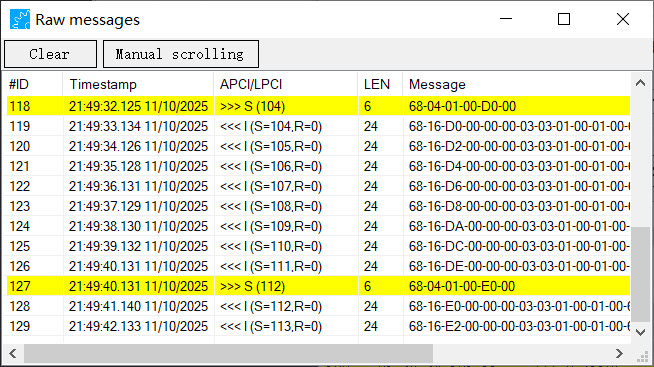

The Raw Message Window
[quote]
The raw message window shows the original message bytes together with some meta information.
参考界面：
The Telegram Detail Window

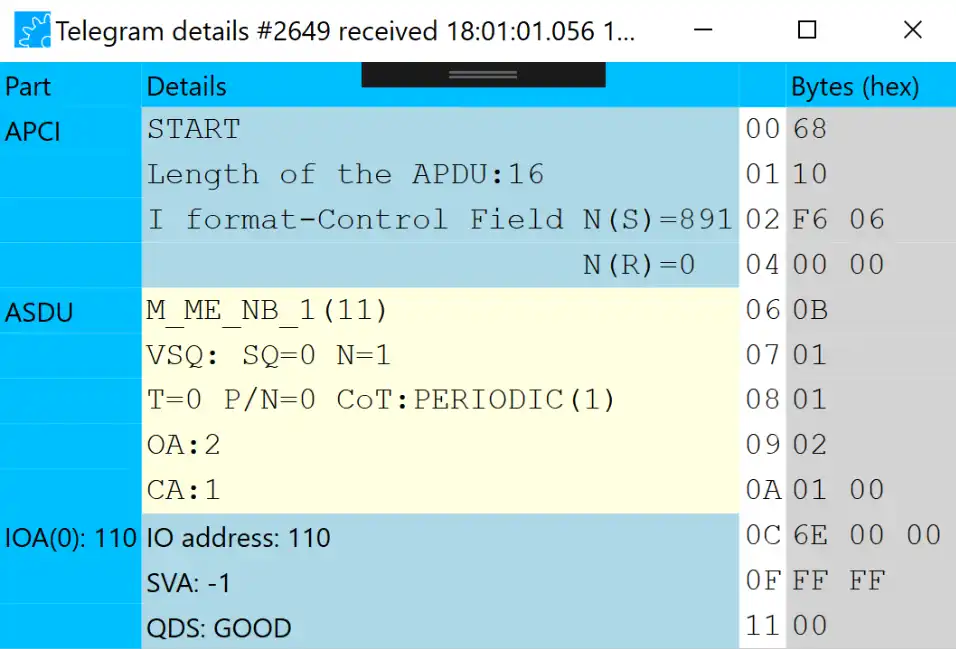

参考界面：
MZ
ps:
按照说明文档中的介绍，双击Raw Message Window 中的一条消息可以查看Detail Window，但是可能是我用的free 版本不能使用该功能。。。
Test
| 序号 | 功能 | 说明 | 进度 |
|---|---|---|---|
| 1 | APCI commands | ||
| 2 | Flow control |
Help
| 序号 | 功能 | 说明 | 进度 |
|---|---|---|---|
| 1 | User Guide | ||
| 2 | About |
