1.4.1 Exercises

1. Try to draw 2 triangles next to each other using glDrawArrays by adding more vertices to your data

2. Now create the same 2 triangles using two different VAOs and VBOs for their data

3. Create two shader programs where the second program uses a different fragment shader that outputs the color yellow; draw both triangles again where one outputs the color yellow

1

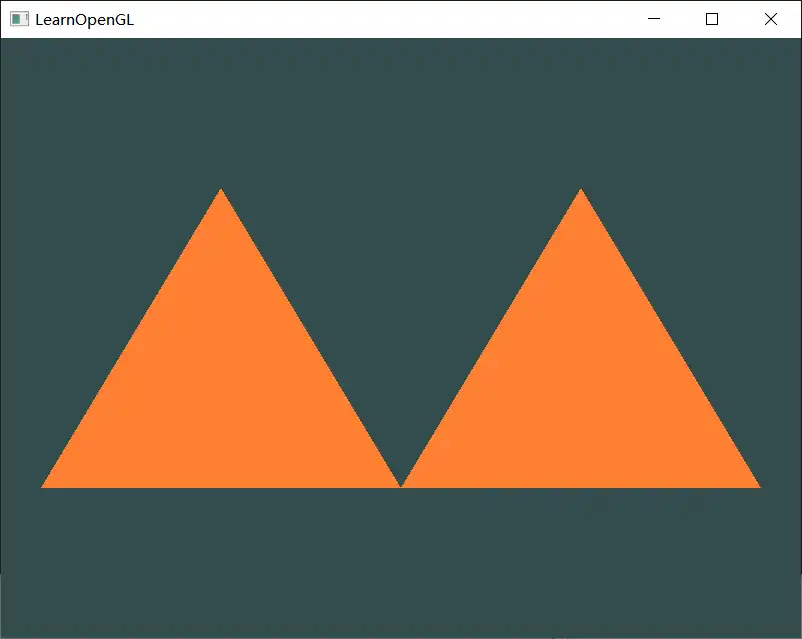

目标：绘制如下图所示的两个三角形

实现：

    float vertices[] = {
        -0.8f, -0.6f, 0.0f,
        -0.4f, 0.6f, 0.0f,
        0.0f, -0.6f, 0.0f,
        0.4f, 0.6f, 0.0f,
        0.8f, -0.6f, 0.0f
    };
    unsigned int indices[] = {  // note that we start from 0!
        0, 1, 2,   // first triangle
        2, 3, 4    // second triangle
    };

    // ..:: Drawing code (in render loop) :: ..
	glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);

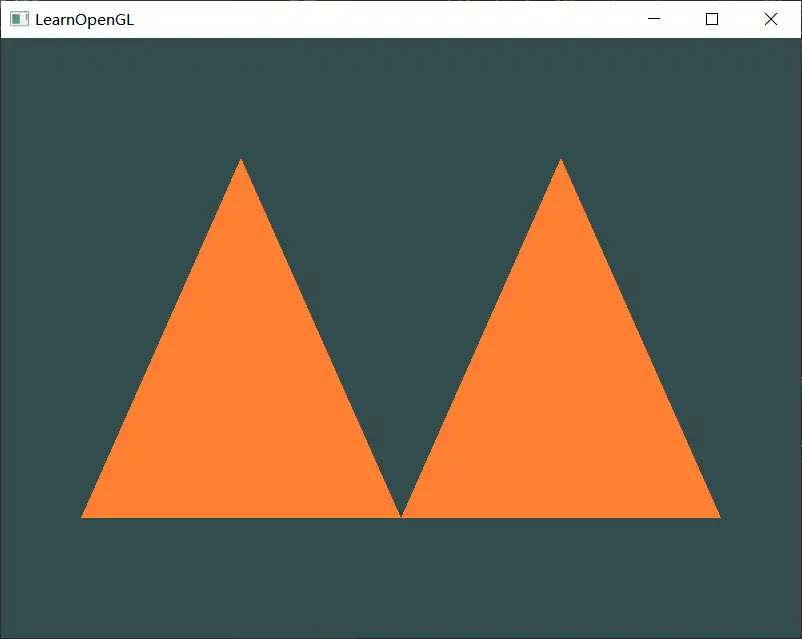

效果：

不考虑比例关系，显示正确。

2

目标：使用两个VOA 和 VBO 来绘制上面的两个三角形
实现：

    float vertices[] = {
        -0.8f, -0.6f, 0.0f,
        -0.4f, 0.6f, 0.0f,
        0.0f, -0.6f, 0.0f
    };

    float vertices2[] = {
        0.0f, -0.6f, 0.0f,
        0.4f, 0.6f, 0.0f,
        0.8f, -0.6f, 0.0f
    };

    unsigned int VBO;
    glGenBuffers(1, &VBO);

    unsigned int VAO;
    glGenVertexArrays(1, &VAO);

    unsigned int VBO2;
    glGenBuffers(1, &VBO2);

    unsigned int VAO2;
    glGenVertexArrays(1, &VAO2);

    // 1. bind Vertex Array Object
    glBindVertexArray(VAO);
    // 2. copy our vertices array in a buffer for OpenGL to use
    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    // 3. then set our vertex attributes pointers
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);

    glBindVertexArray(VAO2);
    glBindBuffer(GL_ARRAY_BUFFER, VBO2);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices2), vertices2, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);

	// ..:: Drawing code (in render loop) :: ..
	glUseProgram(shaderProgram);
	glBindVertexArray(VAO); // seeing as we only have a single VAO there's no need to bind it every time, but we'll do so to keep things a bit more organized
	glDrawArrays(GL_TRIANGLES, 0, 3);

	glBindVertexArray(VAO2);
	glDrawArrays(GL_TRIANGLES, 0, 3);

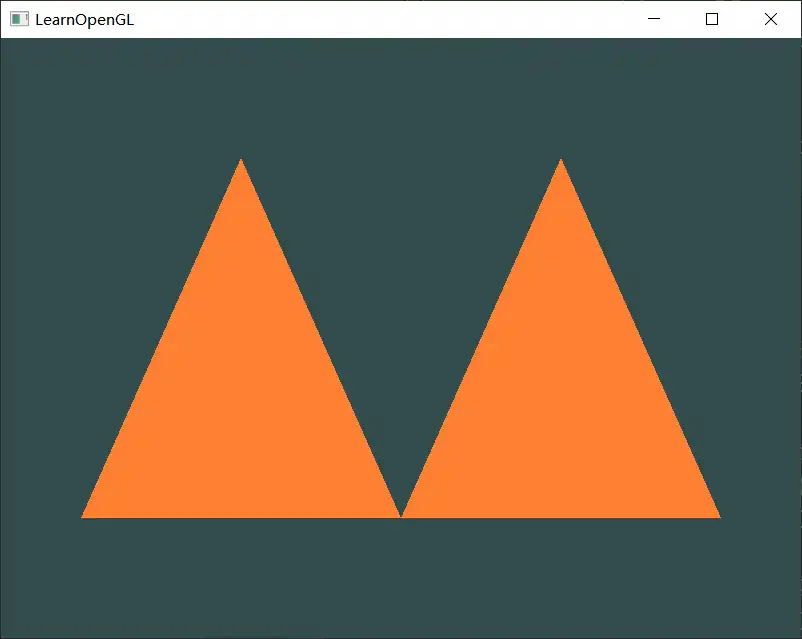

效果：

3

目标：使用不同的program 显示不同的颜色

vertex 的处理相同，fragment 输出的颜色不同
黄色的颜色值：rgb01(1, 0.984, 0)
实现：

const char *fragmentShaderSource2 = //"as before ..."
                                   "   FragColor = vec4(1.0f, 0.984f, 0.0f, 1.0f);\n"
                                   "}\n\0";

    //program2
    unsigned int fragmentShader2;
    fragmentShader2 = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader2, 1, &fragmentShaderSource2, NULL);
    glCompileShader(fragmentShader2);
	//省略了错误检查
    unsigned int shaderProgram2;
    shaderProgram2 = glCreateProgram();
    glAttachShader(shaderProgram2, vertexShader);
    glAttachShader(shaderProgram2, fragmentShader2);
    glLinkProgram(shaderProgram2);

    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);
    glDeleteShader(fragmentShader2);

	// ..:: Drawing code (in render loop) :: ..
	glUseProgram(shaderProgram);
	glBindVertexArray(VAO);
	glDrawArrays(GL_TRIANGLES, 0, 3);

	glUseProgram(shaderProgram2);
	glBindVertexArray(VAO2);
	glDrawArrays(GL_TRIANGLES, 0, 3);

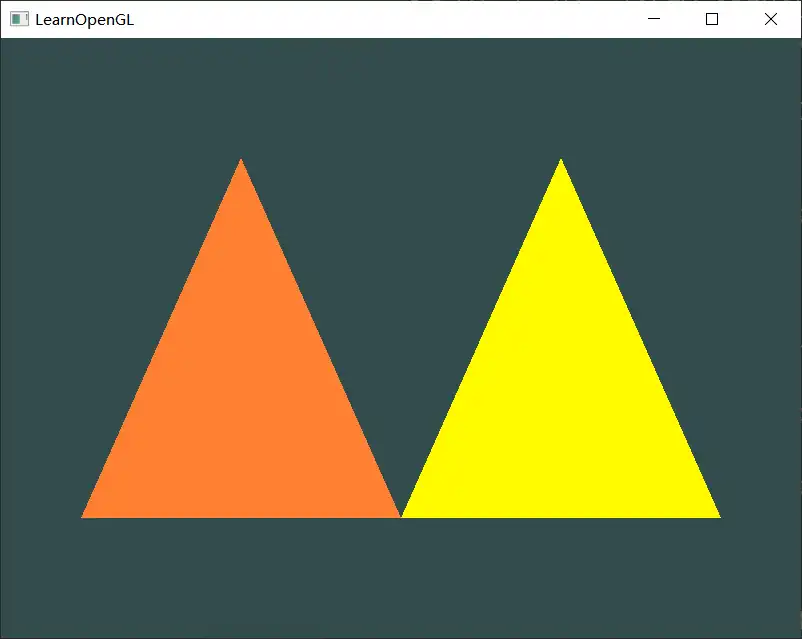

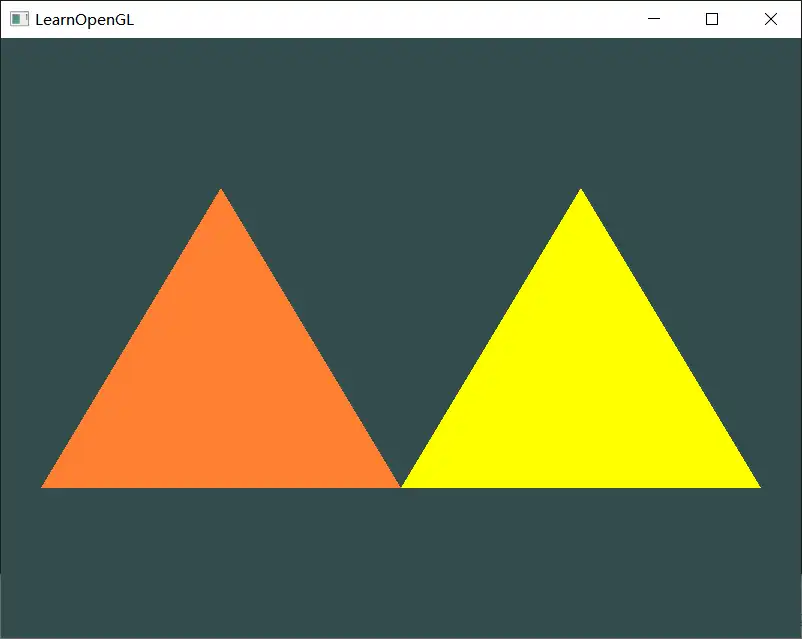

效果：
