1.9.1 Exercises

1

See if you can transform the camera class in such a way that it becomes a true fps camera where you cannot fly; you can only look around while staying on the xz plane

现在FPS游戏可以侧头射击（roll）

2

Try to create your own LookAt function where you manually create a view matrix as discussed at the start of this chapter. Replace glm's LookAt function with your own implementation and see if it still acts the same

1

目前45°仰望天空，按w 会 朝着斜45°方向前进。要求y轴方向不能进行移动，x、z方向仍能移动。

参考

void ProcessKeyboard(Camera_Movement direction, float deltaTime)
{
    float velocity = MovementSpeed * deltaTime;
    if (direction == FORWARD)
        Position += Front * velocity;
    if (direction == BACKWARD)
        Position -= Front * velocity;
    if (direction == LEFT)
        Position -= Right * velocity;
    if (direction == RIGHT)
        Position += Right * velocity;
    // make sure the user stays at the ground level
    Position.y = 0.0f; // <-- this one-liner keeps the user at the ground level (xz plane)
}

额，参考的实现：还是先按照camera 的front、right 方向移动，然后再把y置为0，相当于取移动后camera的位置在xz平面上的投影。

试了一下，效果一样

我的实现

要获取方向向量在xz 平面上的投影，然后在这个投影方向上移动camera

1. 获取投影

    glm::vec3 cameraFrontxz;
    cameraFrontxz.x = cameraFront.x;
    cameraFrontxz.z = cameraFront.z;
    cameraFrontxz.y = 0;
	cameraFrontxz = glm::normalize(cameraFrontxz);

直接把cameraFront 的 y值设置为0，获取投影

2. 更新

    if (glfwGetKey(window, GLFW_KEY_W) == GLFW_PRESS)
        cameraPos += cameraSpeed * cameraFrontxz;
    if (glfwGetKey(window, GLFW_KEY_S) == GLFW_PRESS)
        cameraPos -= cameraSpeed * cameraFrontxz;
    if (glfwGetKey(window, GLFW_KEY_A) == GLFW_PRESS)
        cameraPos -= glm::normalize(glm::cross(cameraFrontxz, glm::vec3(0,1,0))) * cameraSpeed;
    if (glfwGetKey(window, GLFW_KEY_D) == GLFW_PRESS)
        cameraPos += glm::normalize(glm::cross(cameraFrontxz, glm::vec3(0,1,0))) * cameraSpeed;

行号	功能	说明
5、6	向左移动	投影和y轴方向的单位向量作cross，获取xz平面上垂直于投影的向量

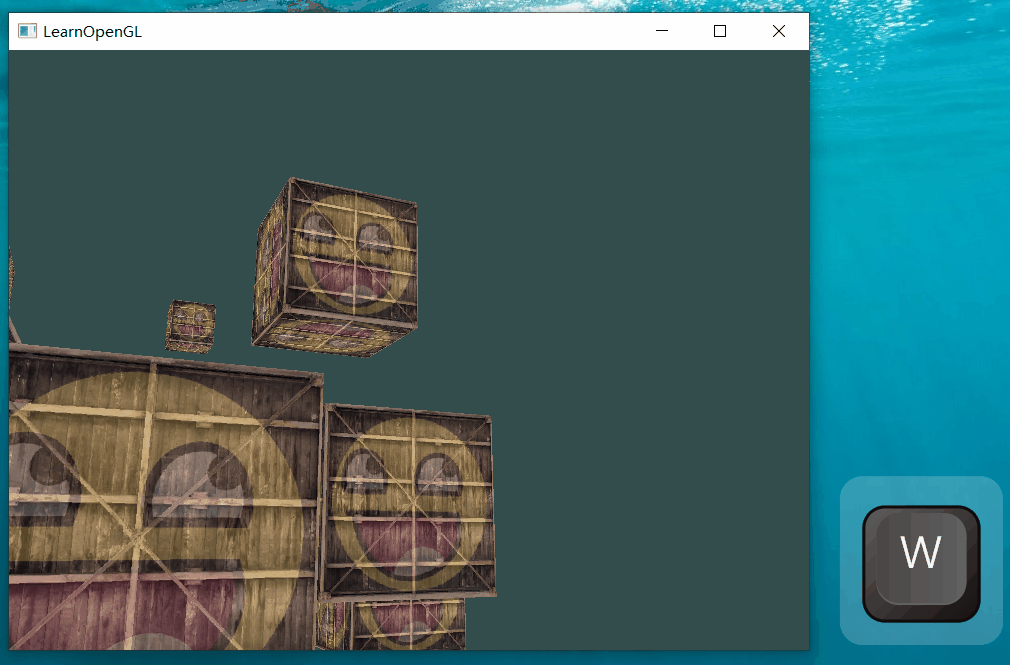

3. 效果


2

lookat 函数声明：

glm::mat4 glm::lookAt(glm::vec3 const& eye, glm::vec3 const& center, glm::vec3 const& up);

$$LookAt = \begin{bmatrix} \color{red}{R_x} & \color{red}{R_y} & \color{red}{R_z} & 0 \\ \color{green}{U_x} & \color{green}{U_y} & \color{green}{U_z} & 0 \\ \color{blue}{D_x} & \color{blue}{D_y} & \color{blue}{D_z} & 0 \\ 0 & 0 & 0 & 1 \end{bmatrix} * \begin{bmatrix} 1 & 0 & 0 & -\color{purple}{P_x} \\ 0 & 1 & 0 & -\color{purple}{P_y} \\ 0 & 0 & 1 & -\color{purple}{P_z} \\ 0 & 0 & 0 & 1 \end{bmatrix}$$

参考

// Custom implementation of the LookAt function
glm::mat4 calculate_lookAt_matrix(glm::vec3 position, glm::vec3 target, glm::vec3 worldUp)
{
    // 1. Position = known
    // 2. Calculate cameraDirection
    glm::vec3 zaxis = glm::normalize(position - target);
    // 3. Get positive right axis vector
    glm::vec3 xaxis = glm::normalize(glm::cross(glm::normalize(worldUp), zaxis));
    // 4. Calculate camera up vector
    glm::vec3 yaxis = glm::cross(zaxis, xaxis);

    // Create translation and rotation matrix
    // In glm we access elements as mat[col][row] due to column-major layout
    glm::mat4 translation = glm::mat4(1.0f); // Identity matrix by default
    translation[3][0] = -position.x; // Fourth column, first row
    translation[3][1] = -position.y;
    translation[3][2] = -position.z;
    glm::mat4 rotation = glm::mat4(1.0f);
    rotation[0][0] = xaxis.x; // First column, first row
    rotation[1][0] = xaxis.y;
    rotation[2][0] = xaxis.z;
    rotation[0][1] = yaxis.x; // First column, second row
    rotation[1][1] = yaxis.y;
    rotation[2][1] = yaxis.z;
    rotation[0][2] = zaxis.x; // First column, third row
    rotation[1][2] = zaxis.y;
    rotation[2][2] = zaxis.z;

    // Return lookAt matrix as combination of translation and rotation matrix
    return rotation * translation; // Remember to read from right to left (first translation then rotation)
}

// Don't forget to replace glm::lookAt with your own version
// view = glm::lookAt(glm::vec3(camX, 0.0f, camZ), glm::vec3(0.0f, 0.0f, 0.0f), glm::vec3(0.0f, 1.0f, 0.0f));
view = calculate_lookAt_matrix(glm::vec3(camX, 0.0f, camZ), glm::vec3(0.0f, 0.0f, 0.0f), glm::vec3(0.0f, 1.0f, 0.0f));

我的实现

不是很懂啊
是这个意思吗？

glm::mat4 lookAt(glm::vec3 const& eye, glm::vec3 const& center, glm::vec3 const& up)
{
    glm::vec3 cright, cup, cdirection;
    cdirection = glm::normalize(eye - center);
    cright = glm::normalize(glm::cross(cdirection, up));
    cup = glm::normalize(glm::cross(cdirection, cright));

    glm::mat4 t(1.0), t2(1.0);
    t[0][3] = -eye.x;
    t[1][3] = -eye.y;
    t[2][3] = -eye.z;

    t2[0][0] = cright.x;
    t2[0][1] = cright.y;
    t2[0][2] = cright.z;
    t2[1][0] = cup.x;
    t2[1][1] = cup.y;
    t2[1][2] = cup.z;
    t2[2][0] = cdirection.x;
    t2[2][1] = cdirection.y;
    t2[2][2] = cdirection.z;

	return t2 * t;
}

“大哥，这味不对啊！”

初始的lookat：
从 [0][0] 遍历到 [3][3] 打印

rotation
-1 0 0 0
0 -1 0 0
0 0 1 0
0 0 0 1
translation
1 0 0 -0
0 1 0 -0
0 0 1 -3
0 0 0 1

而行为正确的矩阵打印值是：

rotation
1 0 0 0
0 1 0 0
0 0 1 0
0 0 0 1
translation
1 0 0 0
0 1 0 0
0 0 1 0
-0 -0 -3 1

...额，这是什么意思。问：不是要transposed、negated的吗？我是按照给定的LookAt 矩阵设置的啊，为什么实际的没有做tansposed 和 negated？

和矩阵在内存中的存储顺序有关，在1.7.1 In practice glUniformMatrix4fv 的参数介绍中有提及。
两种存储顺序：Row-major order 和 Column-major order
使用下面的代码对一个矩阵进行赋值：

    glm::mat4 test;
    for(int i=0; i<4; i++)
    {
        for(int j=0; j<4; j++)
        {
             test[i][j] = i *4 + j;
        }
        std::cout << std::endl;
    }

在调试模式下查看内存中存储的数据：

00 00 00 00 00 00 80 3f 00 00 00 40 00 00 40 40
00 00 80 40 00 00 a0 40 00 00 c0 40 00 00 e0 40
00 00 00 41 00 00 10 41 00 00 20 41 00 00 30 41
00 00 40 41 00 00 50 41 00 00 60 41 00 00 70 41

对应的值：

0 1 2 3
4 5 6 7
8 9 10 11
12 13 14 15

由于glm是按照Column-major order 的顺序存储，所以实际对应的矩阵是：

$$\begin{bmatrix} 0 & 4 & 8 & 12 \\ 1 & 5 & 9 & 13 \\ 2 & 6 & 10 &14 \\ 3 & 7 & 11 & 15 \end{bmatrix}$$

所以[0][1]访问的是第0列，第1行，而不是第0行，第1列

这才对味
